Boating DIY Project – What you Need to Know

Campfire Collective
13 April 2016

This summer couldn’t be wasted. Not a second of it. Fresh out of a (very) long year of university, I knew I had to make my moments on the water count. So, I did. It took me over 6 weeks, but I took an old tin boat that resembled a piece of Swiss cheese and turned it into a functional fishing boat. How? It all started at Christmas earlier that year.

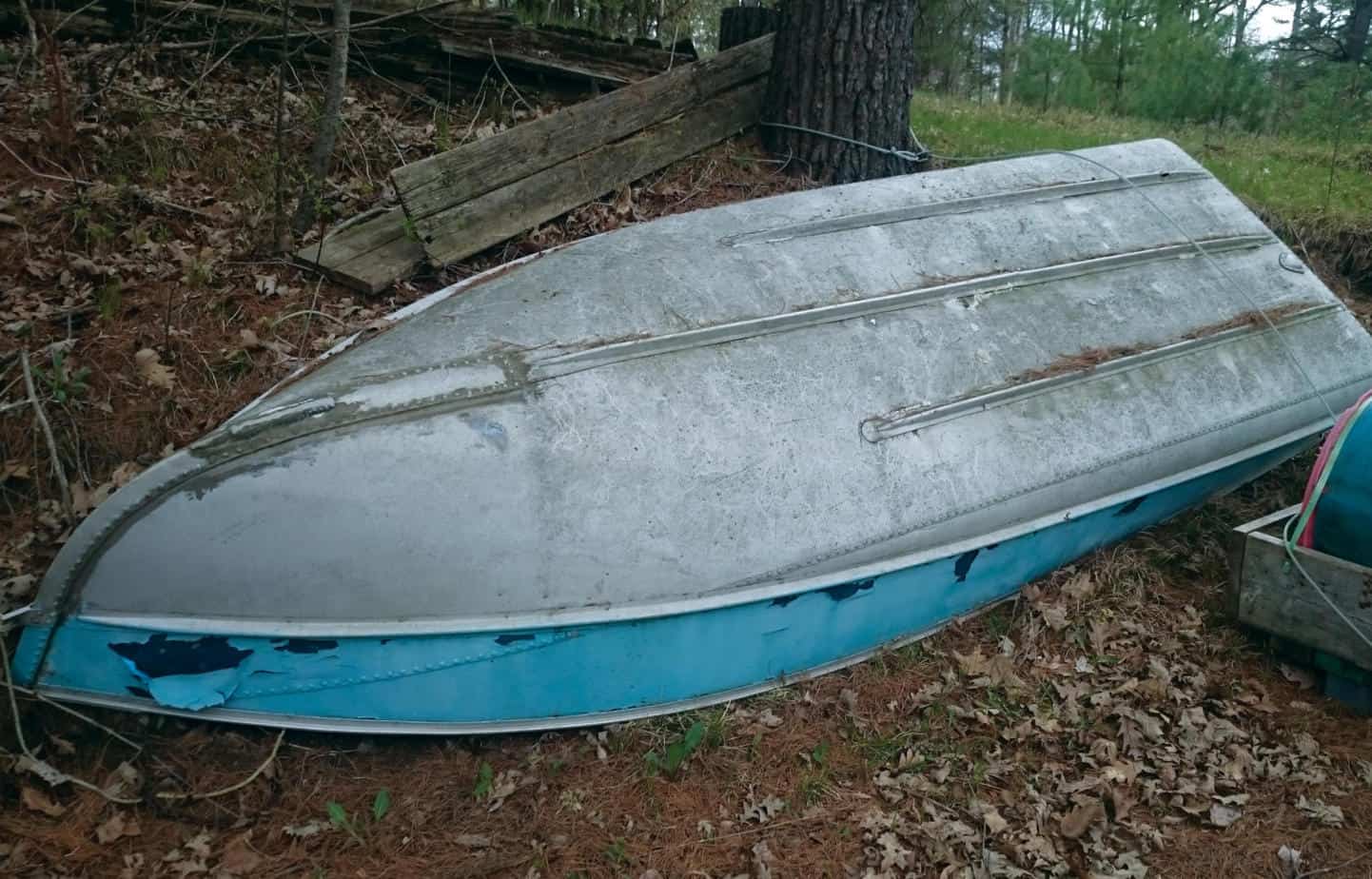

Any Canadian knows that the winter withdrawal from boating is, well… long. Being a full-time student, part-time worker, and all-the-time DIY-er, I was craving a project I could throw some time into this upcoming summer. Something that would push me to learn, encourage me to have fun, and get me back into the spirit of boating in Canada! The 40-year old tin boat that had been sitting upside down on a hill at my cottage was definitely top-of-mind.

After some asking around during the winter months, I was cleared to take the ‘tinner’ and old outboard motor and fix it up! Fast forward to May and it was finally time to start the DIY boat project I’d been waiting all winter to dive into. There were so many steps that I started by writing a list of ‘to-do’s’ that included inspecting the boat, identifying any fixes needed, fixing the 9.9 hp outboard motor, buying my boating safety gear… and the list went on, adding up the dollars and cents… I had so many questions… like:

  1. How would I patch up the holes in my old tin boat?
  2. Who can fix my old 9.9 hp outboard motor?
  3. What boat safety gear did I need? Where would I get it?
  4. Where do I get my Ontario boating license?
  5. Do I need boat insurance?
  6. How do I launch my boat?
  7. What kind of lifejacket do I need?
  8. Do I need a Pleasure Craft License?
  9. What are the alcohol and boating rules in Canada?
  10. What happens if I get caught in a storm?

… And what kind of snacks were good for a boat reno project? All this thinking was making me hungry. But the most sensible thing was for me to get started and figure it out along the way. After all, how hard could it be, right?

NOTE: It wasn’t easy! I should have done more research beforehand. But now, you have this article to help you figure out everything you need to know to start your boating life on the water!



Question 1: How do I fix a tin boat?



Because the tin boat had been left outside for so many years, the old marine sealant had been weathered down and cracked. Ultimately, the boat was full of holes from years of use and weathering. The first step was to strip out all the old sealant with a paint scraper so that I could re-seal the holes.

NOTE: If you’re doing this, you’ll want to sand these areas afterward so the reapplied sealant will stick as best as possible.

Then, I applied 3M 5200 Marine Adhesive Sealant to all the holes and let it dry (this can be applied to a variety of boats with holes or leaks).

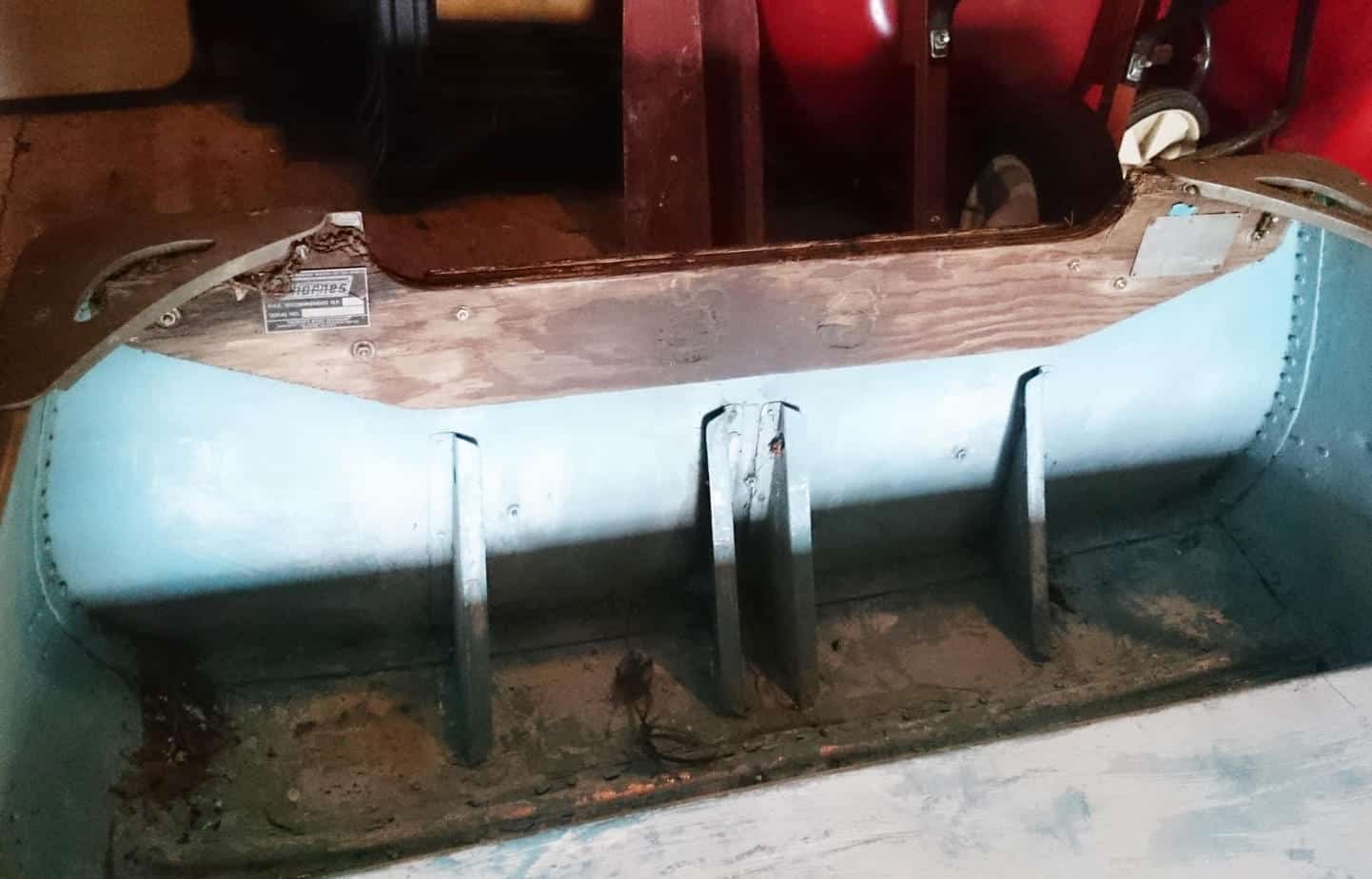

Next, the transom. For those who don’t know, the transom is the stern cross-section of the boat. On a tin boat, it’s a horizontal beam that reinforces the stern of the boat and is what holds the outboard motor on my tin boat. The old transom had rotted away after 15 years of sitting on the ground and needed to be replaced.

Now you may be thinking – that’s easy. Just cut some wood into the proper shape and that will do, right? Wrong. Crafting a proper transom is almost an artform. Because normal plywood is pressure and chemical treated, it is more susceptible to rotting from the water if you don’t seal it. There are marine grade woods out there too – but those will often run you twice as much money. And university debts aren’t free.

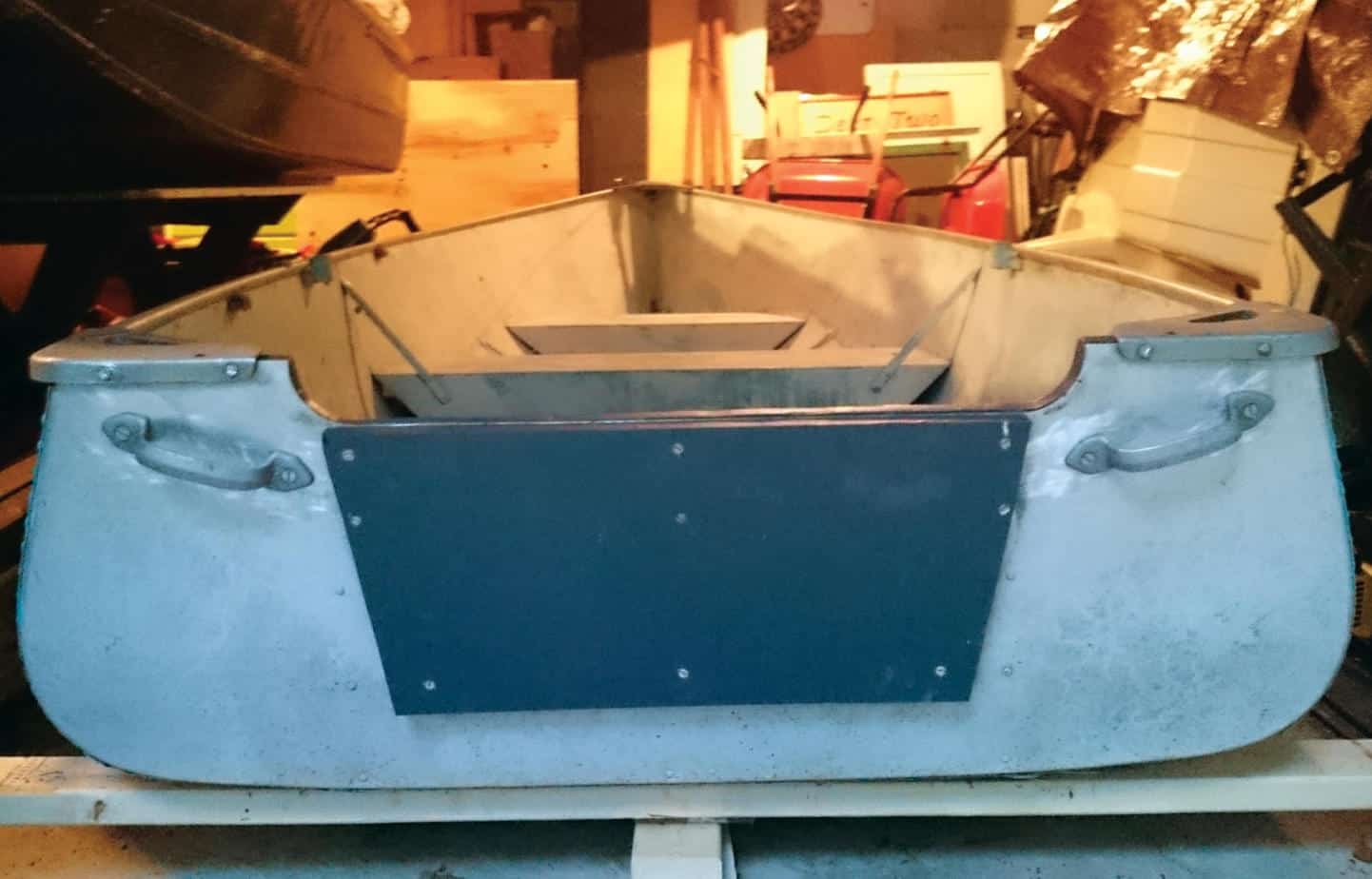

I crafted my transom after a quick trip to Home Depot to pick up ½” plywood, and some waterproof deck stain. After cutting the plywood, I sealed the transom pieces with two coats of waterproof deck sealant to keep water out, which worked great. It’s been about 5 half-day trips so far, and the transom is holding steady!

Of course, I could go into great detail about optional additions to the old tin boat that I added. Things like seats, rod holders, fishing decks, fish finders, live wells, and more, but we’ll leave that for another blog. I can tell you that the first addition I opted for was a removable fishing deck with the leftover plywood I had, and it’s quite convenient for casting and holding fishing gear. You should always keep in mind that adding extra wood to your boat makes it significantly heavier so check your boat’s capacity plate and make sure your motor has enough juice to get you upstream.

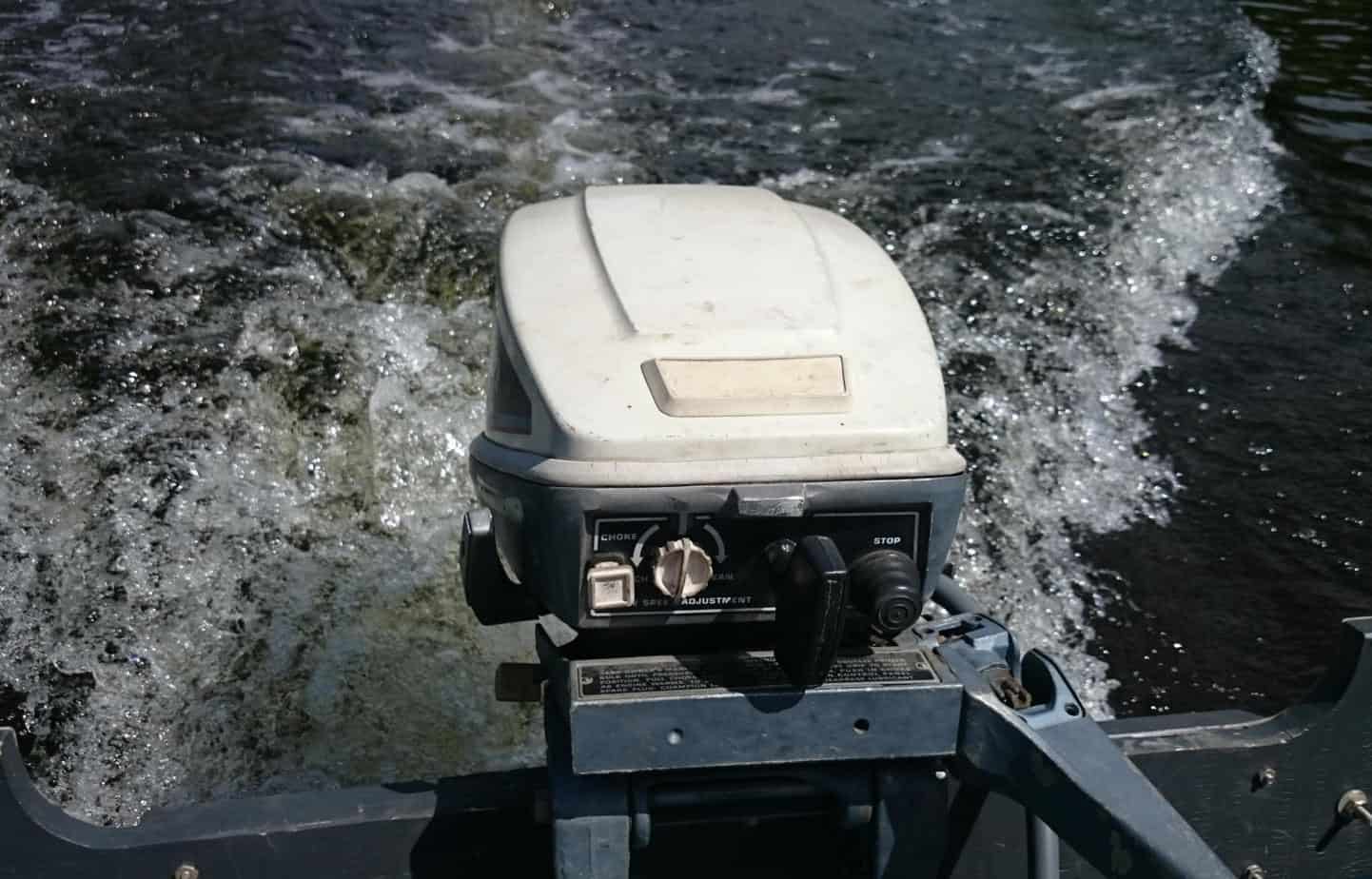

Question 2: How do I fix my outboard motor?

Unfortunately, I didn’t have much time to learn how to fix my outboard engine (and I’m not that mechanically inclined). What I can tell you is that there are TONS of small engine mechanics, outboard motor professionals, and marinas out there that can service your outboard motor. Usually, if your motor has been sitting for a few years it’s just a tune-up that’s required.

Once you get your outboard motor fixed, a good way to keep it in good working order is to only use gasoline with NO ETHANOL. I like to use Shell High Test No Ethanol (also called Premium gas). It’s a little more expensive, but it’ll keep your motor running cleaner and longer.



Question 3: What boat safety gear do I need?



To be quite honest, this wasn’t my first thought when I took on the project. Or even my second thought. After countless hours learning all the rules, though, I’ve summed it up for you quickly.

In order to boat safely in Canada, you are required to carry certain pieces of safety gear with you onboard at all times or risk a fine of $250 and up. The requirements vary for boat size, type, engine horsepower, etc., but I’ll touch on the average requirements. There are four types of Boat Safety Equipment:

  1. Personal Safety Equipment
  2. Boat Safety Equipment
  3. Distress Equipment
  4. Navigation Equipment

I think it’s worthwhile to mention that although it costs a few extra dollars to gather this equipment, it IS required by law, it does save lives and it is used every single day by boaters. Don’t take this section lightly, especially if you’re new to boating. That being said, here’s the list of essential equipment you need on your boat.

NOTE: The list below is a general list for all boats. Not every piece of equipment will be required for your boat.

  1. Lifejackets and personal floatation devices: one for every person onboard
  2. Buoyant heaving line: at least 15m in length
  3. Bailing device
  4. Life buoy: approved by Transport Canada
  5. Bilge pump: either manual or electric
  6. Manual propelling device: usually spare paddles
  7. Axe: only for boats longer than 12 m
  8. Re-boarding equipment: if the freeboard is greater than 0.5 m
  9. Fire extinguisher: see the types of boats that require a fire extinguisher here
  10. Anchor: for boats 9 m in length or longer
  11. Watertight flashlight: can also be used as a navigation light in some cases
  12. Flares: depends on the size & type of boat
  13. Sound-signalling devices: must be audible for a minimum of 0.93 km.
  14. Navigation lights: must be displayed during certain hours of the day
  15. Radar reflector: check to see if your boat requires a radar reflector here

Whew… that seems like a lot. I know. But once you have it all sorted out, it’s easy to pack and keep in a gear bag. Also, you can get some of the above in combined packages. For example, you can get a 4N1 Safety Kit which encompasses a bailing device, sound-signalling device (a whistle), a buoyant heaving line and a watertight flashlight. I have one, and it’s pretty handy (check out the orange bucket on the boat floor by the fishing rods in this image).



See why I said it was a lot of work? Yeah, it’s a lot to learn. But if you’re dedicated to getting on the water, nothing will stop you. My first boat ride in my project ‘tinner’ was so fulfilling and exciting that I would do it again every year if I had to. Now, I always look forward to packing the boat full of gear and heading out for an adventure on the water!
